Out of stock
Franz Binder

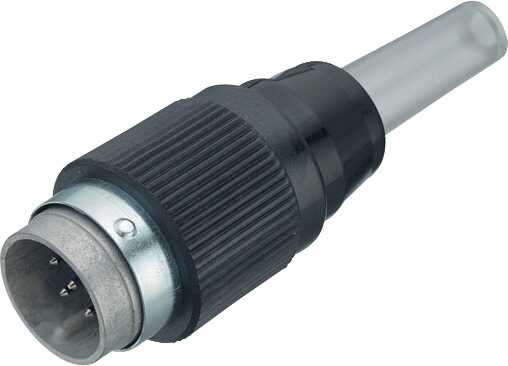

Bayonet cable connector, Contacts: 7, 5.0 - 8.0 mm, shielding is not possible, solder, IP40

Product Code : 09 0063 00 07
Stok Durumu : 0
Birim : Adet
Franz Binder
1,440.24 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 19
%0
20 - 99
%30
100 - 9999
%46
Alert when in stock
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • 09 0063 00 07

    Bayonet, series 690, Power connectors

    Features
    Connector Type
    :
    Plug
    Connector Lock
    :
    Bayonet
    Contact Type
    :
    Male
    Degree of Protection
    :
    IP40

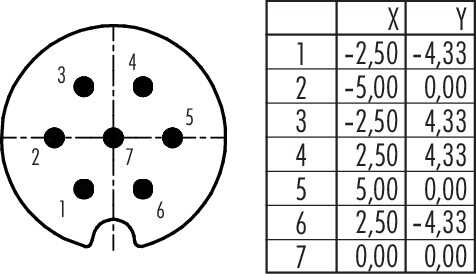

    Number of Poles
    :
    7
    Contacts Supplied
    :
    Yes
    Rated Voltage
    :
    250 V
    Rated Current
    :
    5 A
    Termination Type
    :
    Solder
    Cross Section (mm²)
    :
    0.75
    Cross Section (Awg)
    :
    18
    Angled
    :
    No
    Lower Limit Temperature (°C)
    :
    -40
    Upper Limit Temperature (°C)
    :
    85
    Cable Outlet
    :
    5.00 - 8.00 mm
    Contact Material
    :
    CuZn (brass)
    Contact Surface
    :
    CuSnZn (Optalloy)
    Housing Material
    :
    GD-AL
    Mechanical Life
    :
    > 50
    Rated Impulse Voltage
    :
    2500 V
    Test Voltage
    :
    2950 V
    Overvoltage Category
    :
    II
    Insulation Resistance
    :
    ≥ 10¹⁰ Ω
    Insulation Group
    :
    III
    Volume Resistance
    :
    ≤ 8 mΩ
    EMC Suitability
    :
    No
