Franz Binder

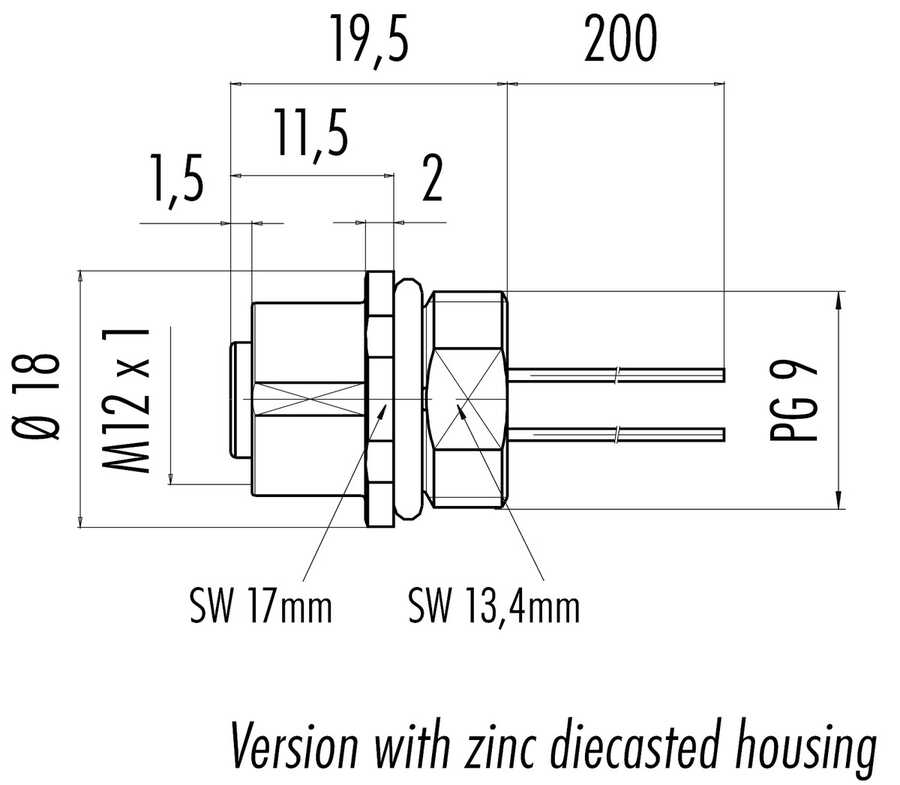

M12-A female panel mount connector, Contacts: 8, not shielded, single wires, IP68, UL, PG9

Product Code : 09 3482 00 08
Stok Durumu : 0
Birim : Adet
Franz Binder
1,152.07 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 19
%0
20 - 99
%10
100 - 9999
%23
Alert when in stock
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • 09 3482 00 08

    M12, series 713, Automation technology - sensors and actuators

    Features
    Connector Type
    :
    Receptacle
    Connector Lock
    :
    Screw
    Contact Type
    :
    Female
    Degree of Protection
    :
    IP68
    Number of Poles
    :
    8
    Coding
    :
    A Coding
    Shell Size
    :
    M12
    Contacts Supplied
    :
    Yes
    Rated Voltage
    :
    30 V
    Rated Current
    :
    1.50 A
    Cross Section (mm²)
    :
    0.25
    Cross Section (Awg)
    :
    24
    Angled
    :
    No
    Flange
    :
    No
    Mounting Side
    :
    Arkadan
    Lower Limit Temperature (°C)
    :
    -40
    Upper Limit Temperature (°C)
    :
    85
    Cable
    :
    Yes
    Contact Material
    :
    CuSn (bronze)
    Contact Surface
    :
    Au (Gold)
    Housing Material
    :
    PA (Polyamide)
    Mechanical Life
    :
    > 100
    Rated Impulse Voltage
    :
    800 V
    Overvoltage Category
    :
    II
    Insulation Resistance
    :
    > 10⁸ Ω
    Insulation Group
    :
    III
    EMC Suitability
    :
    No
    Standards
    :
    UL
