Out of stock
Franz Binder

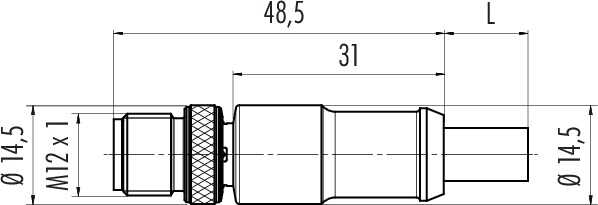

M12-D cable connector, Contacts: 4, shielded, moulded on cable, IP67, UL listed, PUR green, 2 x 2 x AWG22

Product Code : 77 4529 0000 50704-0200
Stok Durumu : 0
Birim : Adet
Franz Binder
1,334.58 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 19
%0
20 - 99
%25
100 - 9999
%45
Alert when in stock
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • 77 4529 0000 50704-0200

    M12, series 876, Automation technology - data transmission and power supply

    Features
    Connector Type
    :
    Plug
    Connector Lock
    :
    Screw
    Contact Type
    :
    Male
    Degree of Protection
    :
    IP67
    Number of Poles
    :
    4
    Coding
    :
    D Coding
    Shell Size
    :
    M12
    Contacts Supplied
    :
    Yes
    Rated Voltage
    :
    250 V
    Rated Current
    :
    4 A
    Cross Section (mm²)
    :
    0.34
    Cross Section (Awg)
    :
    22
    Angled
    :
    No
    Lower Limit Temperature (°C)
    :
    -40
    Upper Limit Temperature (°C)
    :
    85
    Cable
    :
    Yes
    Cable Length (cm)
    :
    200
    Contact Material
    :
    CuZn (brass)
    Contact Surface
    :
    Au (Gold)
    Cable Sheath Material
    :
    PUR
    Cable Sheath Color
    :
    Green
    Housing Material
    :
    PUR
    Mechanical Life
    :
    > 100
    Rated Impulse Voltage
    :
    2500 V
    Overvoltage Category
    :
    II
    Insulation Resistance
    :
    > 10¹⁰ Ω
    Insulation Group
    :
    I
    Volume Resistance
    :
    ≤ 3 mΩ
    EMC Suitability
    :
    Yes
