Out of stock
Franz Binder

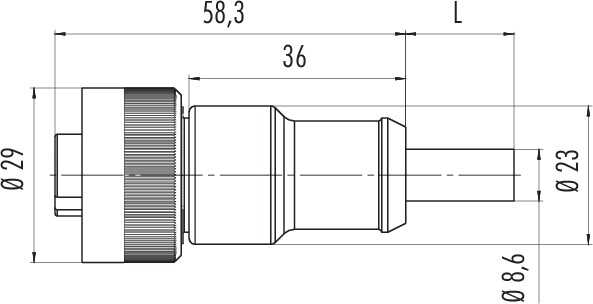

RD24 female cable connector, Contacts: 6+PE, shielding is not possible, moulded on cable, IP67, PVC black, 7 x 0.75 mm²

Product Code : 79 0236 20 07
Stok Durumu : 0
Birim : Adet
Franz Binder
1,952.83 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 19
%0
20 - 99
%32
100 - 9999
%48
Alert when in stock
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • 79 0236 20 07

    RD24, series 692, Power connectors

    Features
    Connector Type
    :
    Plug
    Connector Lock
    :
    Screw
    Contact Type
    :
    Female
    Degree of Protection
    :
    IP67
    Number of Poles
    :
    6 + PE
    Contacts Supplied
    :
    Yes
    Rated Voltage
    :
    250 V
    Rated Current
    :
    8 A
    Cross Section (mm²)
    :
    0.75
    Cross Section (Awg)
    :
    18
    Angled
    :
    No
    Lower Limit Temperature (°C)
    :
    -25
    Upper Limit Temperature (°C)
    :
    80
    Cable
    :
    Yes
    Cable Length (cm)
    :
    200
    Contact Material
    :
    CuZn (brass)
    Contact Surface
    :
    Ag (Silver)
    Cable Sheath Material
    :
    PVC
    Cable Sheath Color
    :
    Black
    Mechanical Life
    :
    > 500
    Rated Impulse Voltage
    :
    4000 V
    Test Voltage
    :
    4800 V
    Overvoltage Category
    :
    III
    Insulation Resistance
    :
    ≥ 10¹⁰ Ω
    Insulation Group
    :
    III
    Volume Resistance
    :
    ≤ 5 mΩ
    EMC Suitability
    :
    No
