Franz Binder

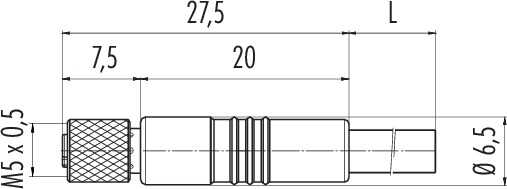

M5 female cable connector, Contacts: 3, not shielded, moulded on cable, IP67, M5x0.5, PUR black, 3 x 0.14 mm²

Product Code : 79 3102 55 03
Stok Durumu : 0
Birim : Adet
Franz Binder
1,080.56 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 19
%0
20 - 99
%29
100 - 9999
%46
Alert when in stock
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • 79 3102 55 03

    M5, series 707, Automation technology - sensors and actuators

    Features
    Connector Type
    :
    Plug
    Connector Lock
    :
    Screw
    Contact Type
    :
    Female
    Degree of Protection
    :
    IP67
    Number of Poles
    :
    3
    Shell Size
    :
    M5
    Contacts Supplied
    :
    Yes
    Rated Voltage
    :
    60 V
    Rated Current
    :
    1 A
    Cross Section (mm²)
    :
    0.14
    Cross Section (Awg)
    :
    26
    Angled
    :
    No
    Lower Limit Temperature (°C)
    :
    -25
    Upper Limit Temperature (°C)
    :
    80
    Cable
    :
    Yes
    Cable Length (cm)
    :
    500
    Contact Material
    :
    CuSn (bronze)
    Contact Surface
    :
    Au (Gold)
    Cable Sheath Material
    :
    PUR
    Cable Sheath Color
    :
    Black
    Housing Material
    :
    PUR
    Mechanical Life
    :
    > 100
    Rated Impulse Voltage
    :
    800 V
    Overvoltage Category
    :
    II
    Insulation Resistance
    :
    > 10⁸ Ω
    Insulation Group
    :
    I
    Volume Resistance
    :
    ≤ 3 mΩ
    EMC Suitability
    :
    No
