Franz Binder

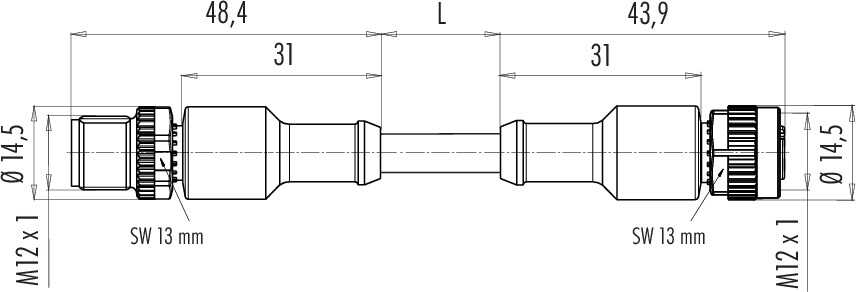

M12-A connecting cord, Contacts: 3, not shielded, moulded on cable, IP68, M12x1.0, PUR black, 3 x 0.34 mm²

Product Code : 79 5000 20 04
Stok Durumu : 0
Birim : Adet
Franz Binder
939.05 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 19
%0
20 - 99
%27
100 - 9999
%44
Alert when in stock
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • 79 5000 20 04

    M12, series 765, Automation technology - sensors and actuators

    Features
    Connector Lock
    :
    Screw
    Degree of Protection
    :
    IP68
    Number of Poles
    :
    3
    Coding
    :
    A Coding
    Contacts Supplied
    :
    Yes
    Shell Size
    :
    M12
    Rated Voltage
    :
    250 V
    Rated Current
    :
    4 A
    Cross Section (mm²)
    :
    0.34
    Cross Section (Awg)
    :
    22
    Lower Limit Temperature (°C)
    :
    -25
    Upper Limit Temperature (°C)
    :
    85
    Cable
    :
    Yes
    Cable Length (cm)
    :
    200
    Contact Surface
    :
    Au (Gold)
    Cable Sheath Material
    :
    PUR
    Cable Sheath Color
    :
    Black
    Housing Material
    :
    PUR
    Mechanical Life
    :
    > 100
    Rated Impulse Voltage
    :
    2500 V
    Overvoltage Category
    :
    II
    Insulation Resistance
    :
    ≥ 10¹⁰ Ω
    Insulation Group
    :
    II
    Volume Resistance
    :
    ≤ 3 mΩ
    EMC Suitability
    :
    No
