Franz Binder

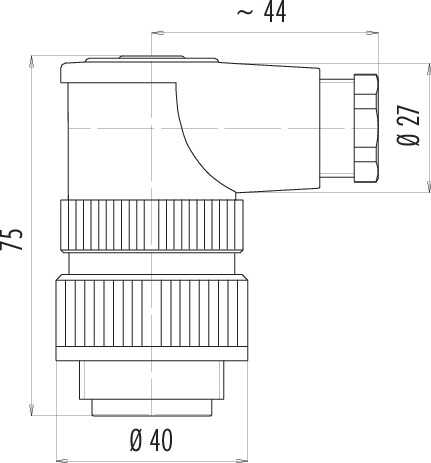

RD30 male angled connector, Contacts: 12+PE, 12.0 - 14.0 mm, shielding is not possible, solder, IP65

Product Code : 99 0717 72 13
Stok Durumu : 0
Birim : Adet
Franz Binder
1,430.77 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 19
%0
20 - 99
%34
100 - 9999
%51
Alert when in stock
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • 99 0717 72 13

    RD30, series 694, Power connectors

    Features
    Connector Type
    :
    Plug
    Connector Lock
    :
    Screw
    Contact Type
    :
    Male
    Degree of Protection
    :
    IP65
    Number of Poles
    :
    12 + PE
    Contacts Supplied
    :
    Yes
    Rated Voltage
    :
    250 V
    Rated Current
    :
    6 A
    Termination Type
    :
    Solder
    Cross Section (mm²)
    :
    1.00
    Cross Section (Awg)
    :
    17
    Angled
    :
    Yes
    Angle
    :
    90°
    Lower Limit Temperature (°C)
    :
    -40
    Upper Limit Temperature (°C)
    :
    100
    Cable Outlet
    :
    12.00 - 14.00 mm
    Contact Material
    :
    CuZn (brass)
    Contact Surface
    :
    Ag (Silver)
    Housing Material
    :
    PA (Polyamide)
    Mechanical Life
    :
    > 500
    Rated Impulse Voltage
    :
    4000 V
    Test Voltage
    :
    4800 V
    Overvoltage Category
    :
    III
    Insulation Resistance
    :
    ≥ 10¹⁰ Ω
    Insulation Group
    :
    III
    Volume Resistance
    :
    ≤ 5 mΩ
    EMC Suitability
    :
    No
