Franz Binder

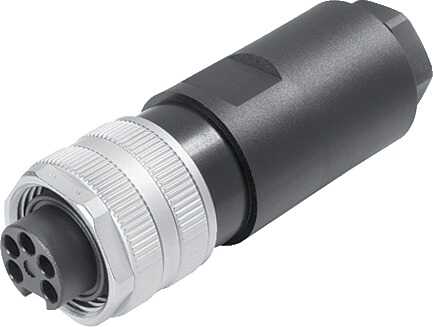

7/8" female cable connector, Contacts: 4+PE, 8.0 - 10.0 mm, not shielded, screw clamp, IP67, UL

Product Code : 99 2444 21 05
Stok Durumu : 0
Birim : Adet
Franz Binder
1,104.72 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 19
%0
20 - 99
%27
100 - 9999
%45
Alert when in stock
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • 99 2444 21 05

    7/8", series 820, Automation technology - data transmission and power supply

    Features
    Connector Type
    :
    Plug
    Connector Lock
    :
    Screw
    Contact Type
    :
    Female
    Degree of Protection
    :
    IP67
    Number of Poles
    :
    4 + PE
    Contacts Supplied
    :
    Yes
    Rated Voltage
    :
    300 V
    Rated Current
    :
    9 A
    Termination Type
    :
    Screw
    Cross Section (mm²)
    :
    1.50
    Cross Section (Awg)
    :
    16
    Angled
    :
    No
    Lower Limit Temperature (°C)
    :
    -25
    Upper Limit Temperature (°C)
    :
    85
    Cable Outlet
    :
    8.00 - 10.00 mm
    Contact Material
    :
    CuSn (bronze)
    Contact Surface
    :
    Au (Gold)
    Housing Material
    :
    PBT
    Mechanical Life
    :
    > 50
    Rated Impulse Voltage
    :
    4000 V
    Test Voltage
    :
    4800 V
    Overvoltage Category
    :
    III
    Insulation Resistance
    :
    ≥ 10¹⁰ Ω
    Insulation Group
    :
    III
    Volume Resistance
    :
    ≤ 5 mΩ
    EMC Suitability
    :
    No
    Standards
    :
    UL
