Franz Binder

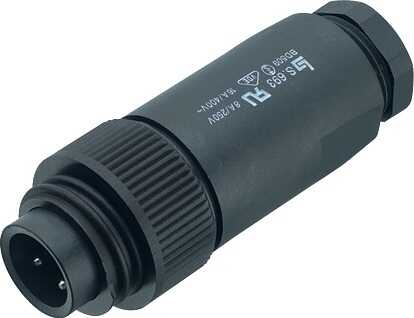

RD24 cable connector, Contacts: 6+PE, 8.0 - 10.0 mm, shielding is not possible, crimp (Crimp contacts must be ordered separately), IP67, UL, ESTI+, VDE, PG11, PG11

Product Code : 99 4201 110 07
Stok Durumu : 6
Birim : Adet
Franz Binder
370.85 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 19
%0
20 - 99
%35
100 - 9999
%51
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • 99 4201 110 07

    RD24, series 693, Power connectors

    Features
    Connector Type
    :
    Plug
    Connector Lock
    :
    Screw
    Contact Type
    :
    Male
    Degree of Protection
    :
    IP67
    Number of Poles
    :
    6 + PE
    Contacts Supplied
    :
    No
    Rated Voltage
    :
    250 V
    Rated Current
    :
    10 A
    Termination Type
    :
    Crimp (Turned)
    Angled
    :
    No
    Lower Limit Temperature (°C)
    :
    -40
    Upper Limit Temperature (°C)
    :
    100
    Cable Outlet
    :
    8.00 - 10.00 mm
    Mechanical Life
    :
    > 500
    Rated Impulse Voltage
    :
    4000 V
    Test Voltage
    :
    4800 V
    Overvoltage Category
    :
    III
    Insulation Resistance
    :
    ≥ 10¹⁰ Ω
    Insulation Group
    :
    III
    Volume Resistance
    :
    ≤ 5 mΩ
    EMC Suitability
    :
    No
    Standards
    :
    UL
