Franz Binder

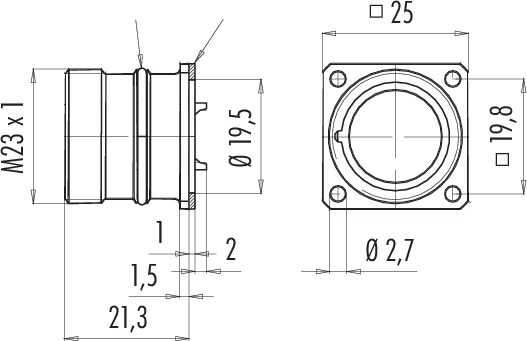

M23 square male panel mount connector, Contacts: 6, shielding is not possible, solder, IP67, front mounting

Product Code : 99 4637 00 06
Stok Durumu : 0
Birim : Adet
Franz Binder
926.12 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 19
%0
20 - 99
%25
100 - 9999
%43
Alert when in stock
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • 99 4637 00 06

    M23, series 623, Power connectors

    Features
    Connector Type
    :
    Receptacle
    Connector Lock
    :
    Screw
    Contact Type
    :
    Male
    Degree of Protection
    :
    IP67
    Number of Poles
    :
    6
    Shell Size
    :
    M23
    Contacts Supplied
    :
    Yes
    Rated Voltage
    :
    300 V
    Rated Current
    :
    20 A
    Termination Type
    :
    Solder
    Cross Section (mm²)
    :
    2.50
    Cross Section (Awg)
    :
    14
    Angled
    :
    No
    Flange
    :
    Yes
    Mounting Side
    :
    Önden
    Lower Limit Temperature (°C)
    :
    -20
    Upper Limit Temperature (°C)
    :
    125
    Contact Material
    :
    CuZn (brass)
    Contact Surface
    :
    Au (Gold)
    Housing Material
    :
    Zinc
    Mechanical Life
    :
    > 50
    Rated Impulse Voltage
    :
    2500 V
    Test Voltage
    :
    2950 V
    Overvoltage Category
    :
    II
    Insulation Resistance
    :
    ≥ 10¹⁰ Ω
    Insulation Group
    :
    III
    Volume Resistance
    :
    ≤ 3 mΩ
    EMC Suitability
    :
    No
