TE Connectivity - Intercontec

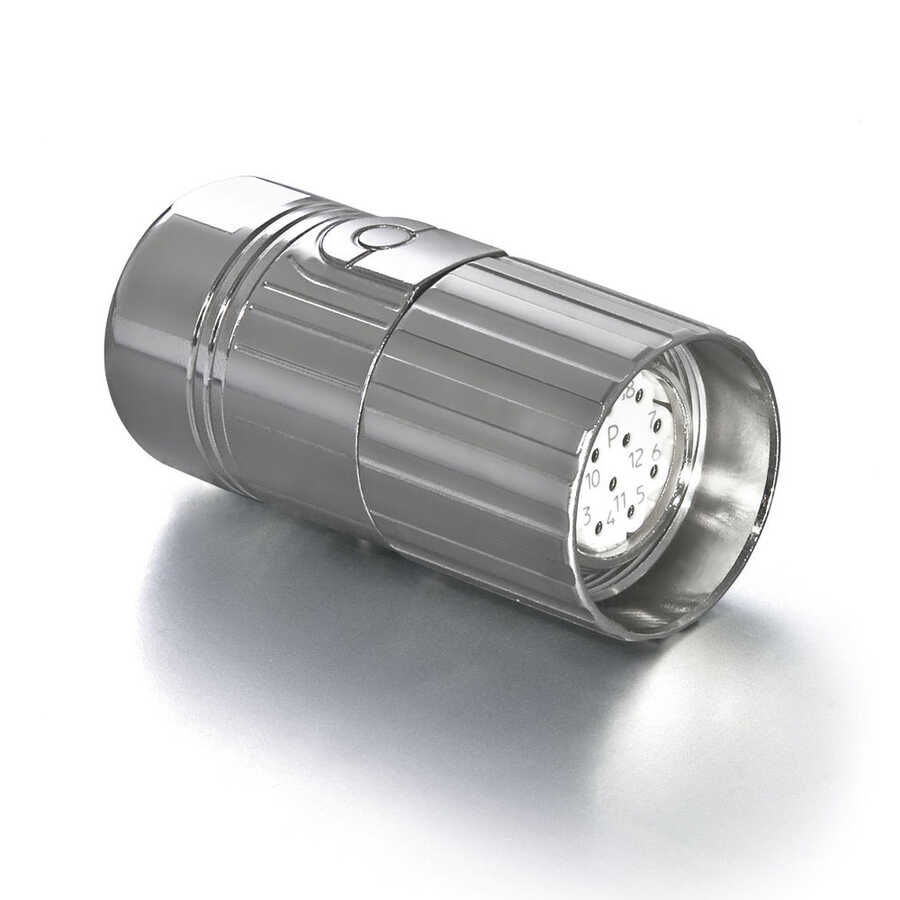

12 Contact Plug Female E Coding 180° Connector

Product Code : ASTA021NN00620235000
Stok Durumu : 0
Birim : Adet
TE Connectivity
1,143.79 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 4
%0
5 - 14
%12
15 - 24
%30
25 - 9999
%40
Alert when in stock
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • ASTA021NN00620235000

    Intercontec 623 series connector which is produced by TE Connectivity has M23 shell size, 12 contacts, Female, E coding, Plug and 180° cable outlet. It's operating voltage is 160 V and current carrying capacity is 7 A, which can operate at temperatures between -20 and 150 degrees. It's in the waterproof IP67 protection class.

    Features
    Series
    :
    623
    Connector Type
    :
    Plug
    Connector Lock
    :
    Threaded
    Contact Type
    :
    Female
    Degree of Protection
    :
    IP67
    Number of Poles
    :
    12
    Contacts Supplied
    :
    No
    Shell Size
    :
    M23
    Coding
    :
    E Coding
    Rated Voltage
    :
    160 V
    Rated Current
    :
    7 A
    Angle
    :
    180° (Straigth)
    Flange
    :
    No
    Lower Limit Temperature (°C)
    :
    -20
    Upper Limit Temperature (°C)
    :
    150
    Cable Outlet
    :
    6.00 - 10.00 mm
    Housing Material
    :
    Zinc
    Housing Color
    :
    Metallic
    Mechanical Life
    :
    > 500
    EMC Suitability
    :
    Yes

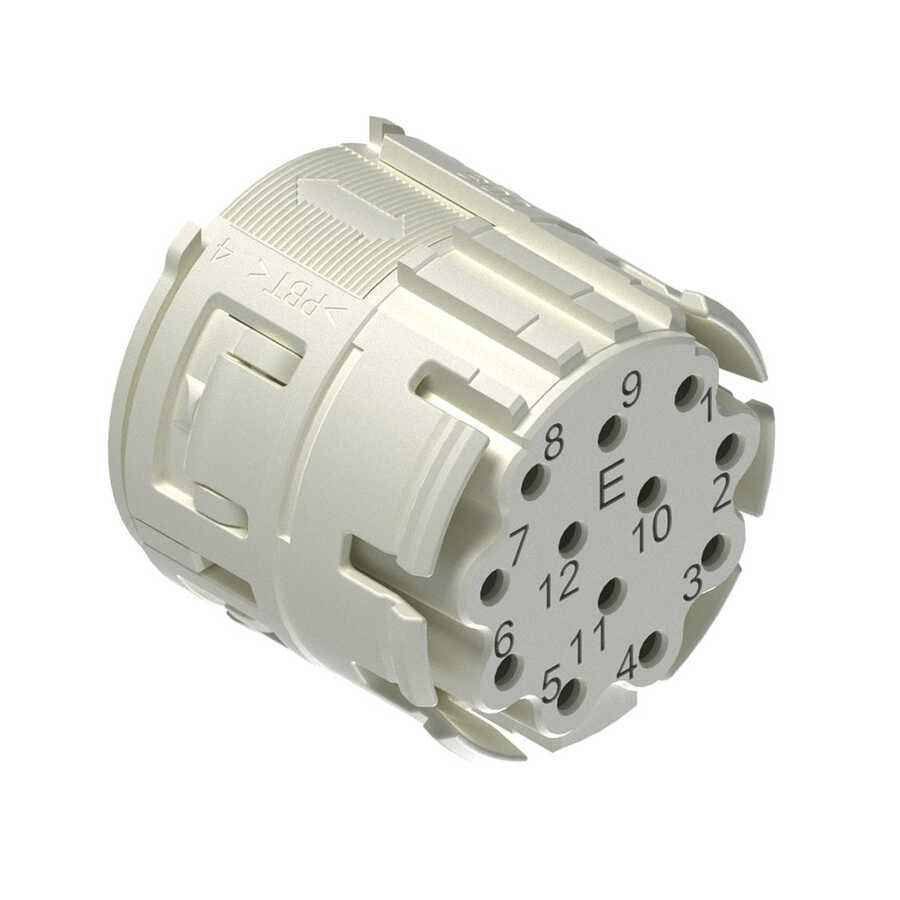

    Insert
    :
    With
    Housing Coating
    :
    Ni (Nickel)
