Allied Connectors

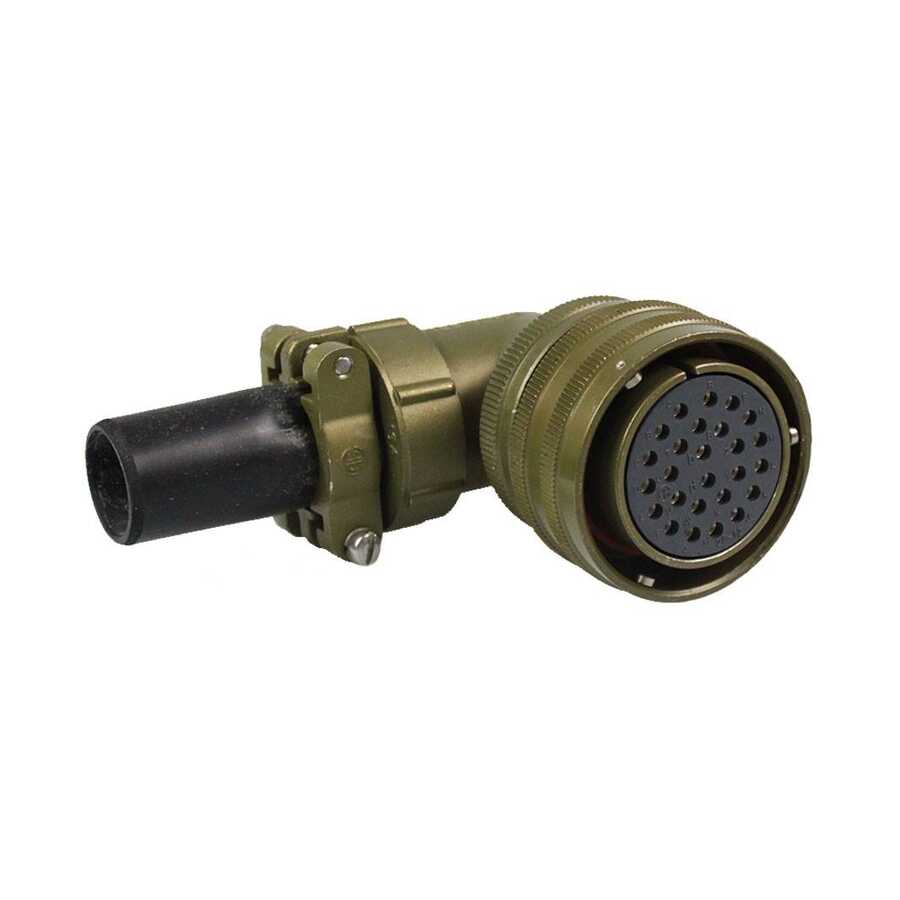

37 Contact Plug 90° Angled Female Military Connector (VG 95234)

Product Code : MG 08F 28-21S A30
Stok Durumu : 0
Birim : Adet
Allied Connectors
3,889.59 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 9
%0
10 - 24
%15
25 - 49
%27
50 - 99
%39
Alert when in stock
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • MG 08F 28-21S A30

    MG series military type connector which is produced by Allied Connectors in VG 95234 standards has shell size 28 Crimp (Turned) type 37 contacts Female. It's Plug and 90° angled cable outlet. It has 28-21 insert arrangement. With it's Green body color and Cadmium body coating. It's operating voltage is 700 VDC / 500 VAC and current carrying capacity is 13 A, which can operate at temperatures between -55 and 125 degrees.

    Features
    Series
    :
    MG
    Connector Type
    :
    Plug
    Insert Arrangement
    :
    28-21
    Connector Lock
    :
    Bayonet
    Contact Type
    :
    Female
    Number of Poles
    :
    37
    Contacts Supplied
    :
    Yes
    Shell Size
    :
    28
    Rated Voltage
    :
    700 VDC / 500 VAC
    Rated Current
    :
    13 A
    Termination Type
    :
    Crimp (Turned)
    Cross Section (mm²)
    :
    1.50
    Cross Section (Awg)
    :
    16
    Angle
    :
    90°
    Flange
    :
    No
    Lower Limit Temperature (°C)
    :
    -55
    Upper Limit Temperature (°C)
    :
    125
    Cable Outlet
    :
    11.90 - 23.40 mm
    Contact Material
    :
    Cu (Copper)
    Contact Surface
    :
    Ag (Silver)
    Housing Material
    :
    Aluminum
    Housing Color
    :
    Green
    Mechanical Life
    :
    > 500
    Standards
    :
    VG 95234
    Gasket
    :
    Without
    Housing Coating
    :
    Cadmium
    Telescoping Bushing
    :
    Without
    Cable Clamp
    :
    With
    Cap
    :
    Without
