Franz Binder

Bayonet female panel mount connector, Contacts: 5, shielding is not possible, solder, IP40

Product Code : 09 0062 00 05
Stok Durumu : 10+
Birim : Adet
Franz Binder
839.79 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 19
%0
20 - 99
%31
100 - 9999
%46
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • 09 0062 00 05

    Bayonet, series 690, Power connectors

    Features
    Connector Type
    :
    Receptacle
    Connector Lock
    :
    Bayonet
    Contact Type
    :
    Female
    Degree of Protection
    :
    IP40

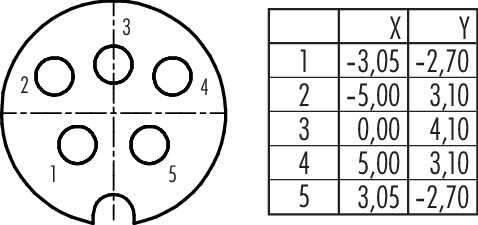

    Number of Poles
    :
    5
    Contacts Supplied
    :
    Yes
    Rated Voltage
    :
    250 V
    Rated Current
    :
    10 A
    Termination Type
    :
    Solder
    Cross Section (mm²)
    :
    2.50
    Cross Section (Awg)
    :
    14
    Angled
    :
    No
    Flange
    :
    No
    Mounting Side
    :
    Arkadan
    Lower Limit Temperature (°C)
    :
    -40
    Upper Limit Temperature (°C)
    :
    85
    Contact Material
    :
    CuSn (bronze)
    Contact Surface
    :
    Ag (Silver)
    Housing Material
    :
    PBT
    Mechanical Life
    :
    > 50
    Rated Impulse Voltage
    :
    2500 V
    Test Voltage
    :
    2950 V
    Overvoltage Category
    :
    II
    Insulation Resistance
    :
    ≥ 10¹⁰ Ω
    Insulation Group
    :
    III
    Volume Resistance
    :
    ≤ 5 mΩ
    EMC Suitability
    :
    No
