Franz Binder

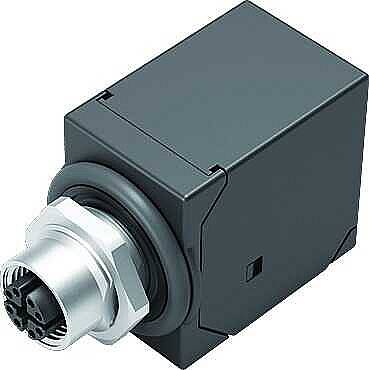

M12-X adapter, Contacts: 8, IP67, UL

Product Code : 09 5287 00 08
Stok Durumu : 0
Birim : Adet
Franz Binder
3,355.15 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 19
%0
20 - 99
%30
100 - 9999
%48
Alert when in stock
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • 09 5287 00 08

    M12, series 876, Automation technology - data transmission and power supply

    Features
    Connector Lock
    :
    Screw
    Degree of Protection
    :
    IP67
    Number of Poles
    :
    8
    Shell Size
    :
    M12
    Coding
    :
    X Coding
    Rated Voltage
    :
    50 VAC / 60 VDC
    Rated Current
    :
    0.50 A
    Lower Limit Temperature (°C)
    :
    -40
    Upper Limit Temperature (°C)
    :
    85
    Contact Material
    :
    CuSn (bronze)
    Contact Surface
    :
    Au (Gold)
    Housing Material
    :
    Brass, Zinc
    Mechanical Life
    :
    > 100
    Rated Impulse Voltage
    :
    800 V
    Overvoltage Category
    :
    II
    Insulation Resistance
    :
    > 10⁸ Ω
    Insulation Group
    :
    III
    Volume Resistance
    :
    ≤ 10 mΩ
