Franz Binder

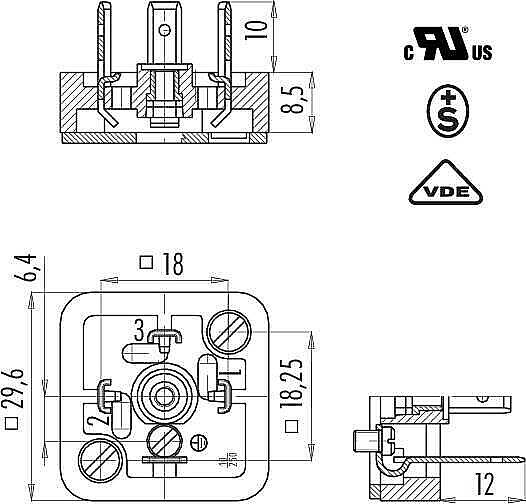

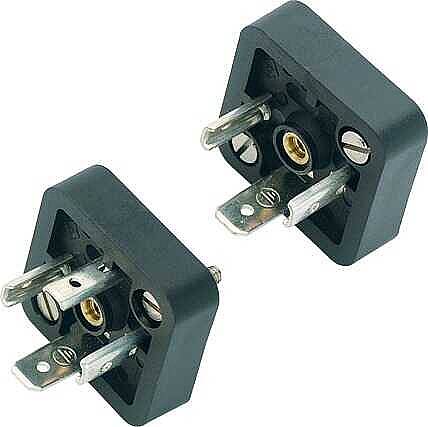

Size A male connector (panel mount), Contacts: 3+PE, not shielded, solder, IP40 without seal, UL, ESTI+, VDE
Ürün Kodu43 1711 000 04
Product code2029
Stok Durumu
Sold Out
BirimAdet
111,05 TL + VAT
More Solenoid Connectors
Featured Information
M18, series 210, Automation technology - solenoid valve connectors
Buy More Pay Less
| Amount | Discount | Unit price |
| 1 - 19 | %0 | 133,26 TL |
| 20 - 99 | %40 | 79,95 TL |
| 100 - 9999 | %52 | 63,96 TL |
CollectionAlarm Price
43 1711 000 04
M18, series 210, Automation technology - solenoid valve connectors
Product Filters | ||
|---|---|---|
| Connector Type | : | Receptacle |
| Contact Type | : | Male |
| Degree of Protection | : | IP40 |
| Number of Poles | : | 3 + PE |
| Contacts Supplied | : | Yes |
| Rated Voltage | : | 250 V |
| Rated Current | : | 10 A |
| Termination Type | : | Solder |
| Cross Section (mm²) | : | 1.00 |
| Cross Section (Awg) | : | 17 |
| Angled | : | No |
| Flange | : | No |
| Mounting Side | : | Arkadan |
| Lower Limit Temperature (°C) | : | -20 |
| Upper Limit Temperature (°C) | : | 100 |
| Contact Material | : | CuZn (brass) |
| Contact Surface | : | Sn (Tin) |
| Mechanical Life | : | > 50 |
| Rated Impulse Voltage | : | 4000 V |
| Test Voltage | : | 4800 V |
| Overvoltage Category | : | III |
| Insulation Resistance | : | ≥ 10¹⁰ Ω |
| Insulation Group | : | III |
| Volume Resistance | : | ≤ 15 mΩ |
| EMC Suitability | : | No |
| Supplier Product Code | : | 43 1711 000 04 |
