Franz Binder

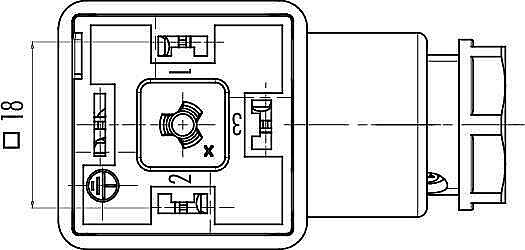

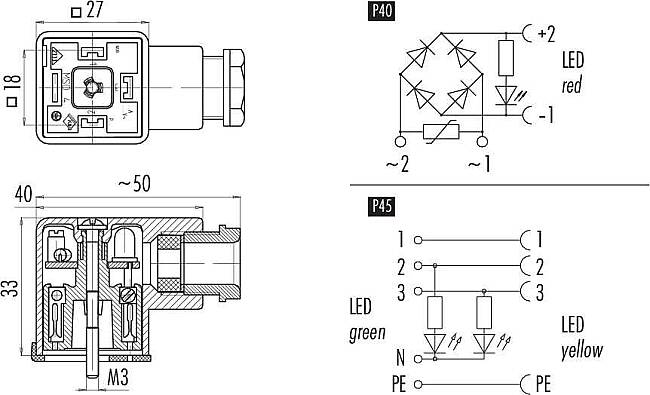

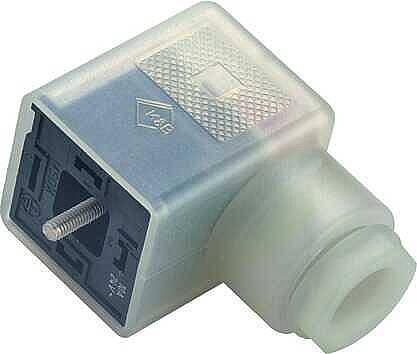

Size A female connector (panel mount), Contacts: 3+PE, 8.0 - 10.0 mm, not shielded, screw clamp, IP40 without seal, VDE, ESTI+
Ürün Kodu43 1732 146 04
Product code2040
Stok Durumu
Sold Out
BirimAdet
975,00 TL + VAT
More Solenoid Connectors
Featured Information
M18, series 210, Automation technology - solenoid valve connectors
Buy More Pay Less
| Amount | Discount | Unit price |
| 1 - 19 | %0 | 1.170,00 TL |
| 20 - 99 | %34 | 772,20 TL |
| 100 - 9999 | %50 | 585,00 TL |
CollectionAlarm Price
43 1732 146 04
M18, series 210, Automation technology - solenoid valve connectors
Product Filters | ||
|---|---|---|
| Connector Type | : | Receptacle |
| Contact Type | : | Female |
| Degree of Protection | : | IP40 |
| Number of Poles | : | 3 + PE |
| Contacts Supplied | : | Yes |
| Rated Voltage | : | 24 V |
| Rated Current | : | 10 A |
| Termination Type | : | Screw |
| Cross Section (mm²) | : | 0.34 - 1.50 |
| Angled | : | No |
| Flange | : | No |
| Mounting Side | : | Arkadan |
| Lower Limit Temperature (°C) | : | -25 |
| Upper Limit Temperature (°C) | : | 85 |
| Cable Outlet | : | 8.00 - 10.00 mm |
| Contact Material | : | CuSn (bronze) |
| Contact Surface | : | Ni (Nickel) |
| Housing Material | : | PC |
| Mechanical Life | : | > 50 |
| Rated Impulse Voltage | : | 800 V |
| Overvoltage Category | : | III |
| Insulation Group | : | III |
| Volume Resistance | : | ≤ 15 mΩ |
| EMC Suitability | : | No |
| Supplier Product Code | : | 43 1732 146 04 |
