Franz Binder

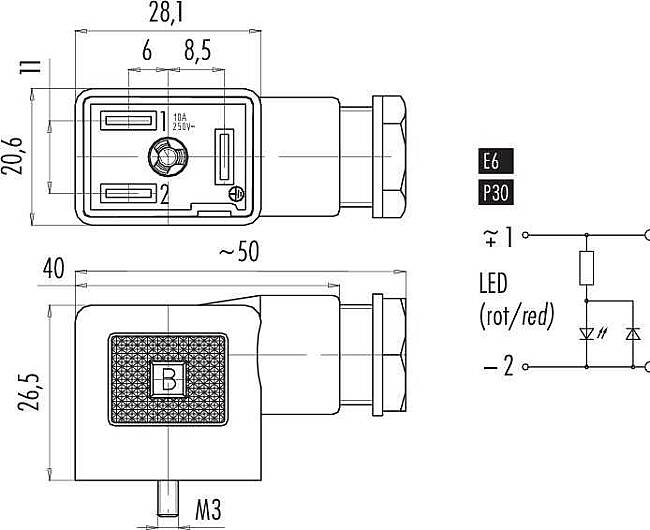

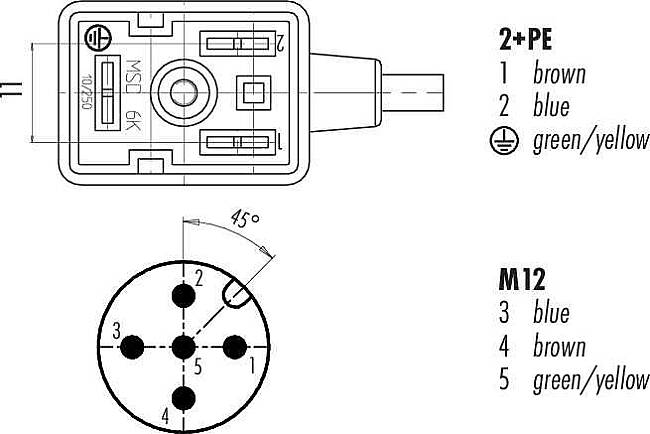

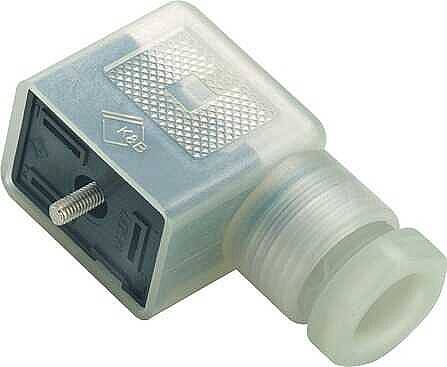

Size B (industry) female connector (panel mount), Contacts: 2+PE, 6.0 - 8.0 mm, not shielded, screw clamp, IP40 without seal, VDE, ESTI+
Ürün Kodu43 1834 135 03
Product code2044
Stok Durumu
Sold Out
BirimAdet
614,65 TL + VAT
More Solenoid Connectors
Featured Information
M18, series 220, Automation technology - solenoid valve connectors
Buy More Pay Less
| Amount | Discount | Unit price |
| 1 - 19 | %0 | 737,58 TL |
| 20 - 99 | %31 | 508,93 TL |
| 100 - 9999 | %47 | 390,92 TL |
CollectionAlarm Price
43 1834 135 03
M18, series 220, Automation technology - solenoid valve connectors
Product Filters | ||
|---|---|---|
| Connector Type | : | Receptacle |
| Contact Type | : | Female |
| Degree of Protection | : | IP40 |
| Number of Poles | : | 2 + PE |
| Contacts Supplied | : | Yes |
| Rated Voltage | : | 24 V |
| Rated Current | : | 10 A |
| Termination Type | : | Screw |
| Cross Section (mm²) | : | 0.34 - 1.50 |
| Angled | : | No |
| Flange | : | No |
| Mounting Side | : | Arkadan |
| Lower Limit Temperature (°C) | : | -20 |
| Upper Limit Temperature (°C) | : | 85 |
| Cable Outlet | : | 6.00 - 8.00 mm |
| Contact Material | : | CuSn (bronze) |
| Contact Surface | : | Ni (Nickel) |
| Mechanical Life | : | > 50 |
| Rated Impulse Voltage | : | 800 V |
| Overvoltage Category | : | III |
| Insulation Group | : | III |
| Volume Resistance | : | ≤ 15 mΩ |
| EMC Suitability | : | No |
| Supplier Product Code | : | 43 1834 135 03 |
