Franz Binder

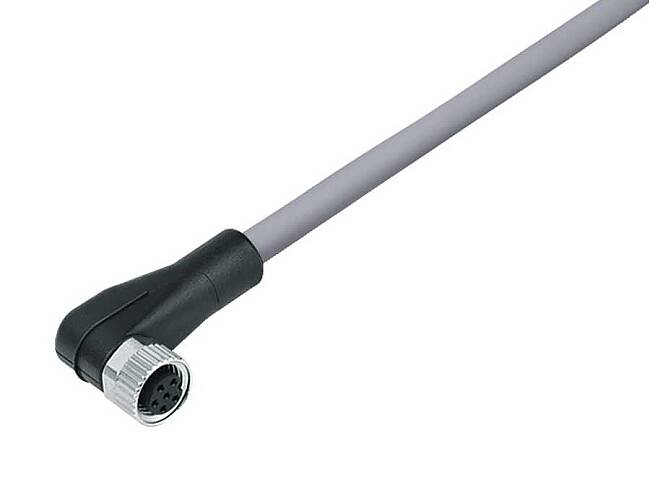

M8 female angled connector, Contacts: 3, not shielded, moulded on cable, IP67, UL listed, PVC grey, 3 x 0.34 mm²

Product Code : 79 3408 42 03
Stok Durumu : 10+
Birim : Adet
Franz Binder
431.42 TL + VAT
225.46 TL + VAT
0 Yorum | Add Comment
Your Catch
:
247.16 TL
Buy wholesale for more discount!
Quantity
Discount
1 - 19
%0
20 - 99
%10
100 - 9999
%23
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • 79 3408 42 03

    M8, series 718, Automation technology - sensors and actuators

    Features
    Connector Type
    :
    Plug
    Connector Lock
    :
    Screw
    Contact Type
    :
    Female
    Degree of Protection
    :
    IP67
    Number of Poles
    :
    3
    Contacts Supplied
    :
    Yes
    Shell Size
    :
    M8
    Rated Voltage
    :
    60 V
    Rated Current
    :
    4 A
    Cross Section (mm²)
    :
    0.34
    Cross Section (Awg)
    :
    22
    Angled
    :
    Yes
    Angle
    :
    90°
    Lower Limit Temperature (°C)
    :
    -25
    Upper Limit Temperature (°C)
    :
    85
    Cable
    :
    Yes
    Cable Length (cm)
    :
    200
    Contact Material
    :
    CuZn (brass)
    Contact Surface
    :
    Au (Gold)
    Cable Sheath Material
    :
    PVC
    Cable Sheath Color
    :
    Grey
    Housing Material
    :
    PUR
    Housing Color
    :
    Black
    Mechanical Life
    :
    > 100
    Rated Impulse Voltage
    :
    1500 V
    Overvoltage Category
    :
    II
    Insulation Group
    :
    II
    EMC Suitability
    :
    No
    Led
    :
    No
