Franz Binder

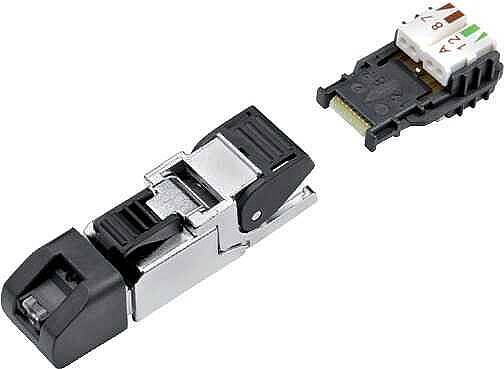

M12-X RJ45-male connector, Contacts: 8, 5.0 - 9.0 mm, shieldable, piercing technology, IP20, UL listed

Product Code : 99 9687 810 08
Stok Durumu : 0
Birim : Adet
Franz Binder
791.23 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 19
%0
20 - 99
%30
100 - 9999
%48
Alert when in stock
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • 99 9687 810 08

    locking latch, series 825, Automation technology - data transmission and power supply

    Features
    Connector Type
    :
    Plug
    Contact Type
    :
    Male
    Degree of Protection
    :
    IP20
    Number of Poles
    :
    8
    Coding
    :
    X Coding
    Contacts Supplied
    :
    Yes
    Shell Size
    :
    M12
    Rated Voltage
    :
    50 V
    Rated Current
    :
    1.30 A
    Cross Section (Awg)
    :
    1 x 24 - 7 x 22
    Lower Limit Temperature (°C)
    :
    -25
    Upper Limit Temperature (°C)
    :
    85
    Cable Outlet
    :
    5.00 - 9.00 mm
    Contact Material
    :
    Spring Steel
    Contact Surface
    :
    Au (Gold)
    Housing Material
    :
    Zinc
    Mechanical Life
    :
    > 750
    Rated Impulse Voltage
    :
    800 V
    Overvoltage Category
    :
    III
    Insulation Group
    :
    II
    Volume Resistance
    :
    ≤ 20 mΩ
    EMC Suitability
    :
    Yes
