TE Connectivity

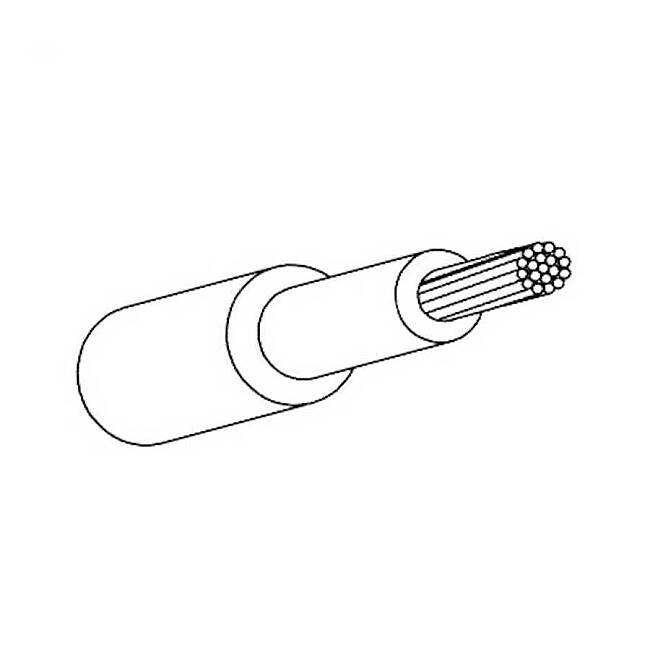

70.00 mm² Black Mil-Spec Wire
Ürün KoduFTR16-70-0
Product code7089
Stok Durumu
Sold Out
BirimMetre
2.723,46 TL + VAT
More RaychemMore Military Cables
CollectionAlarm Price
FTR16-70-0
The 70.00 mm² Black wire which is produced by Raychem has in MIL-STD-681E standards which can operate at temperatures between -40 and 125 degrees. The conductor coating is Sn (Tin) Coated Copper and the cable sheath coating is provided with Polyolefin & FRST. It's operating voltage is 600 - 1000 V.
Product Filters | ||
|---|---|---|
| Rated Voltage | : | 600 - 1000 V |
| Cross Section (mm²) | : | 70.00 |
| Lower Limit Temperature (°C) | : | -40 |
| Upper Limit Temperature (°C) | : | 125 |
| Cable Sheath Material | : | Polyolefin & FRST |
| Cable Sheath Color | : | Black |
| Standards | : | MIL-STD-681E |
| Conductor Coating | : | Sn (Tin) Coated Copper |
| Shield Structure | : | No |
| Number of Cores | : | 1 |
| Supplier Product Code | : | FTR16-70-0 |
