TE Connectivity

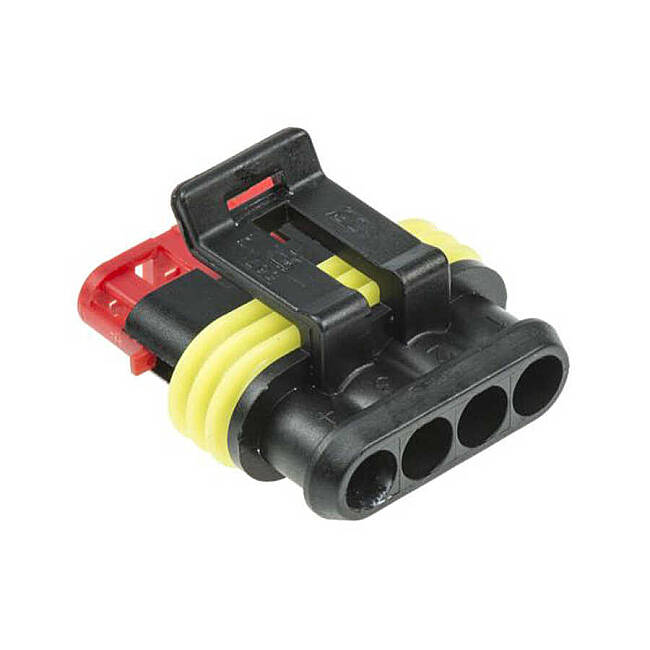

AMP Superseal 1.5 Series 4 Contact Plug Female Connector
Ürün Kodu282088-1
Product code7151
Stok Durumu
Sold Out
BirimAdet
56,08 TL + VAT
More AMPMore Automotive Connectors
Other Options:
Buy More Pay Less
| Amount | Discount | Unit price |
| 1 - 9 | %0 | 67,30 TL |
| 10 - 99 | %17 | 55,86 TL |
| 100 - 499 | %33 | 45,09 TL |
| 500 - 9999 | %43 | 38,36 TL |
CollectionAlarm Price
282088-1
AMP Superseal 1.5 series 4 contact Plug Female connector which is produced by TE Connectivity which has feature of waterproof IP67 protection class, 0.35 - 2.50 mm² cable cross section range and 14 A current carrying capacity. Its operating temperature between -40 and 125 degrees.
Product Filters | ||
|---|---|---|
| Series | : | Superseal 1.5 |
| Connector Type | : | Plug |
| Contact Type | : | Female |
| Degree of Protection | : | IP67 |
| Number of Poles | : | 4 |
| Contacts Supplied | : | No |
| Rated Current | : | 14 A |
| Termination Type | : | Crimp (Stamped) |
| Cross Section (mm²) | : | 0.35 - 2.50 |
| Lower Limit Temperature (°C) | : | -40 |
| Upper Limit Temperature (°C) | : | 125 |
| Housing Material | : | PA (Polyamide) |
| Housing Color | : | Black |
| EMC Suitability | : | No |
| Supplier Product Code | : | 282088-1 |
